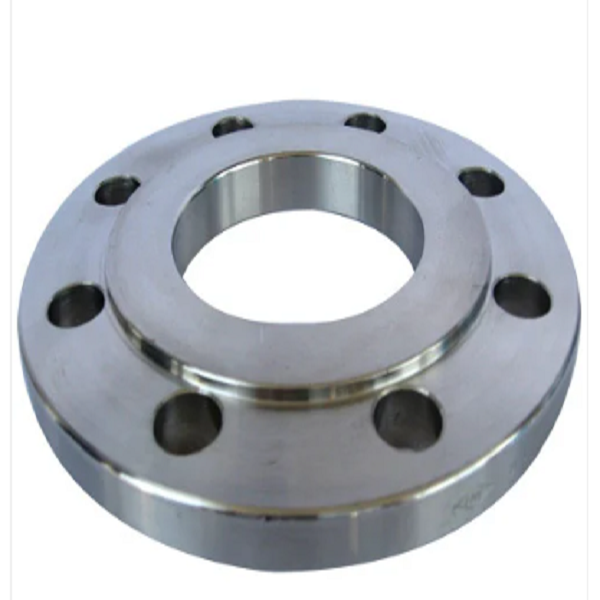

Slip On Flanges

Size   5-10 inch, 10-20 inch, 1-5 inch
Material Standard  ASTM A105, ASTM A351, ASTM A182
Rated Pressure      AS REQ
Material Grade      S.S, C.S, NICKEL ALLOYS ETC
Finishing     STD
Surface Finishing  SMOOTH

Specifications:

Slip-on Flanges Size: 1/2"NB TO 48"NB
Slip-on Flanges Pressure: 150#, 300#, 600#, 900#, 1500#, 2500#
Slip-on Flanges European Series: PN 6, PN 10, PN 16, PN 25, PN 40, PN 63, PN 100 DIN
Slip-on Flanges specification as per the international standard: ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE
Slip-on Flanges Facing Types: American Series: Flat Face(FF), Raised Face(RF), Tongue (T), Groove (G), Female (F), Male (M), Ring Joints Face (RJ)
European Series: Type A (Flat Face), Type B (Raised Face), Type C (Tongue), Type D (Groove), Type E (Spigot), Type F (Recess), Type G (O-Ring Spigot), Type H (O-Ring Groove)
Stainless Steel Slip on Flange: ASTM A182 Grade: F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L
Duplex Steel Slip on Flange: ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61
Alloy Steel Slip on Flange: AS SORF Flange ASTM SA 182 F1/F5/F9/F11/F22/F91
Carbon Steel Slip on Flange: ASTMA 105 Gr. F42/ 46 / 52 /56 / 60 / 65 / 70
Low Temperature Carbon Steel Slip on Flange: A350 LF2/A350 LF3
Nickel Alloy Slip on Flange Standard: ASTM / ASME SB 564 / 160 / 472
Applications : Used in quick assembly to save the cost, these are also used in less strict requirements in terms of length of pipe section.

Market Potential Area:
United States, China, Germany, Japan, France, Switzerland
