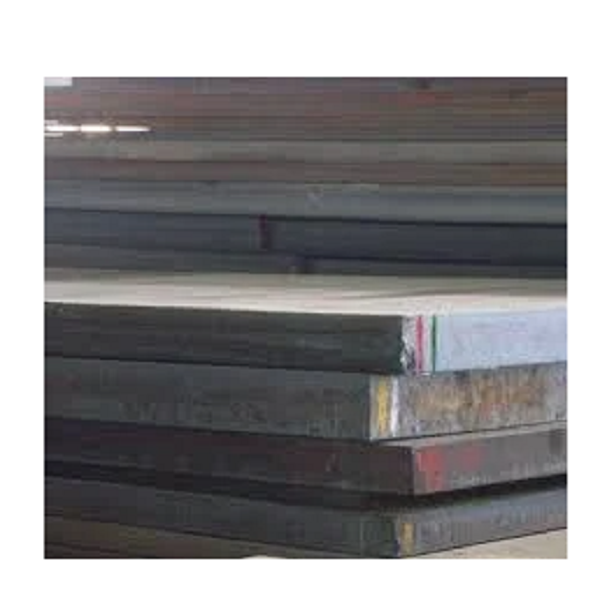

SA 516 Grade70 Plates

SA516-60/70 Low Sulphur <0.003% Boiler Steel Plates

ASTM A516/516M / ASME SA516/516M GRADE 60/65/70 HIC Tested (Hydrogen Induced Cracking) NACE TM-0284 2003 / NACE MR-0175 / ISO 15156-2, SSCC Tested (Sulphide Stress Corrosion Cracking) NACE TM-0177 2005 / NACE MR-0103 2007, SOHIC (Stress Oriented Hydrogen Induced Cracking) Tested FINE GRAINED PRESSURE VESSEL STEEL PLATES FOR SOUR GAS SERVICE

Hot Rolled Steel ASTM/ASME A/SA 516 Grade 60/70 HIC Tested Plates in accordance with NACE Test Method TM 0284 Latest Edition using a test solution A pH of 3 conforming to NACE TM 0177 Latest Edition
CLR : Crack Length Ratio <5% / <10% / <15%
CTR : Crack Thickness Ratio <1.5% / <3% / <1%
CSR : Crack Sensitivity Ratio <0.5% / <1% / <2%
Test Solution B with pH of 5
CLR : Crack Length Ratio <0.5%
CTR : Crack Thickness Ratio <0.1%
CSR : Crack Sensitivity Ratio <0.05%
ASME SA516/SA516M-07 MT LTV ZT Grade 60/65/70
ASTM A516/A516M-07 MT LTV ZT Grade 60/65/70
ASME Section II Part A Edition 2007 Addenda 2008
ASME SA20/SA20M-08
ASTM A20/A20M-08

Market Potential Area:
United States, China, Germany, Japan, France, Switzerland
